Schedule Gantt Chart

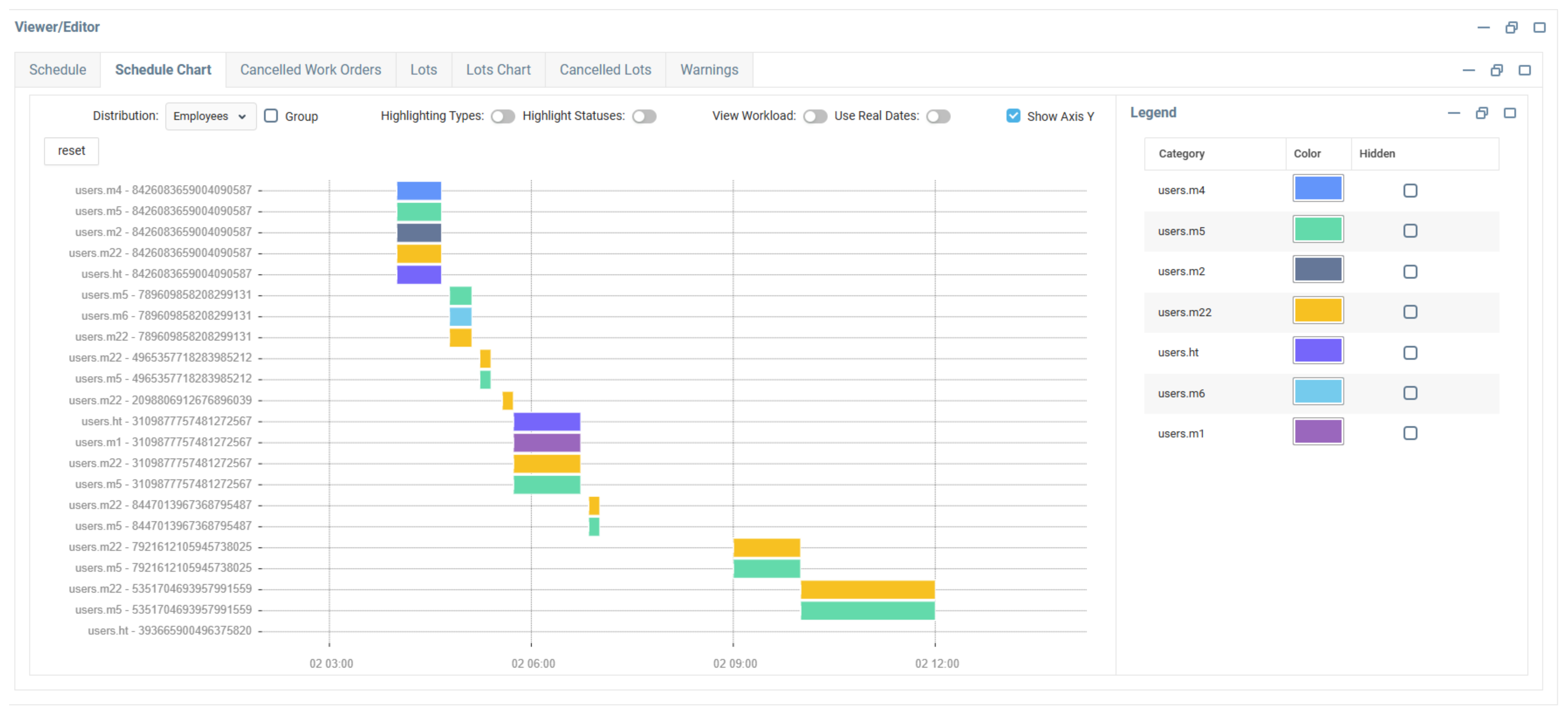

The Schedule Gantt Chart (users.%.dashboards.scheduleGantt) is an absolute dashboard used as an subdashboard within the Schedule Editor/Viewer. This dashboard extends the standard Gantt Chart component, providing a detailed visualization of work order schedules for production entities and product lots in storage units.
The control panel, located directly above the Gantt chart, allows the user to:
Arrange work orders by their identifiers, production entities, employees, tools, segments, or commercial orders.
The chart assigns a single color to all series belonging to the same group.Arrange lots by their identifiers, products, storage locations, or parent work orders.
Group series on the chart based on the selected arrangement.
Modify the boundaries of rectangles on the chart to highlight production and non-production work orders.
Use rectangle border colors to indicate current work order statuses or lot types.
Display both actual and planned durations of work orders.

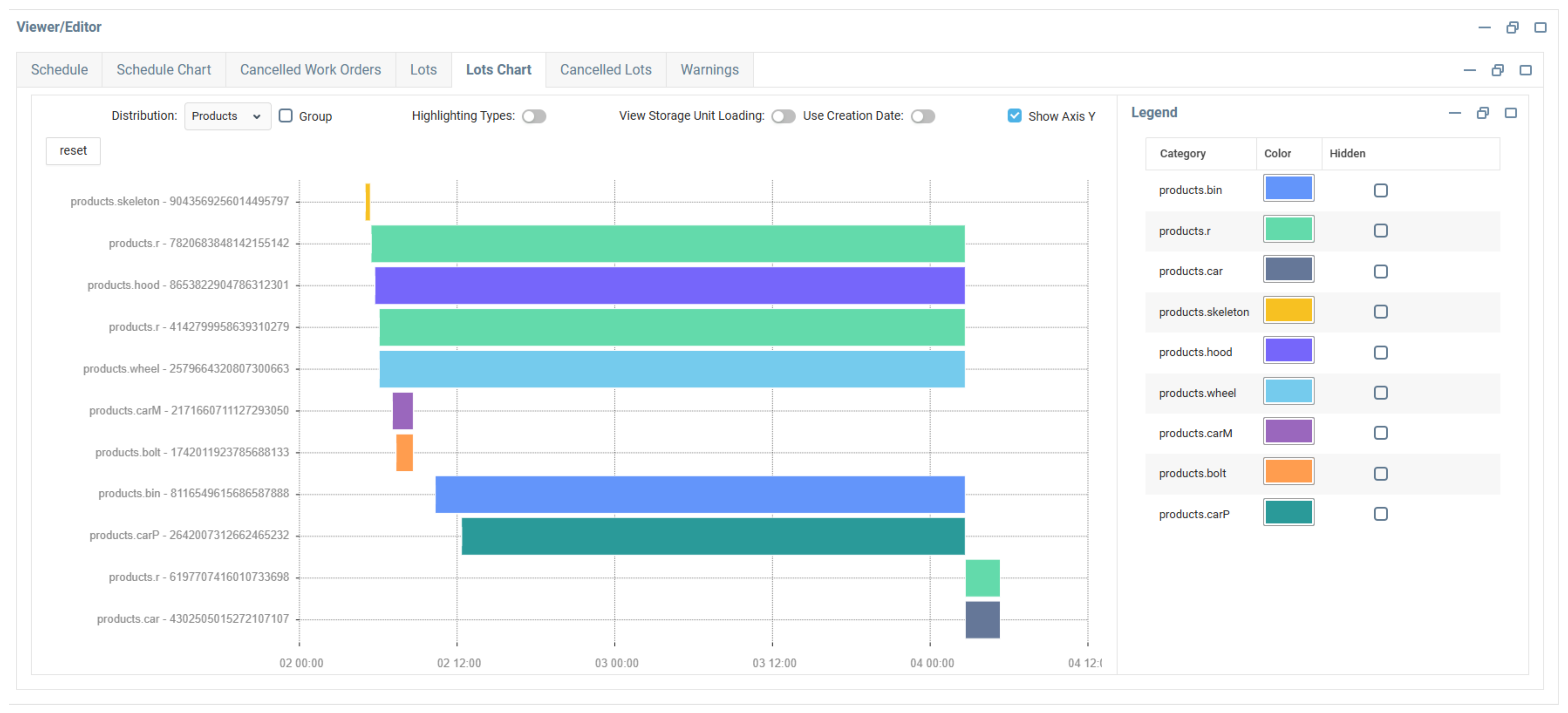

Show lot storage periods starting from the delivery or production date.
Display either current progress for a work order or the workload percentage of a production entity or employee, depending on the selected arrangement.
Show the percentage of storage unit capacity occupied by each lot.
Show or hide the chart’s Y-axis.
A floating Legend panel appears to the right of the Gantt chart. The user can use this panel to hide or recolor groups of series displayed on the chart.
